Mechanial Design

From concept to production-ready CAD

Why Mechanical Design Matter?

Design for manufacture and assembly to cut cost and reduce supplier rework

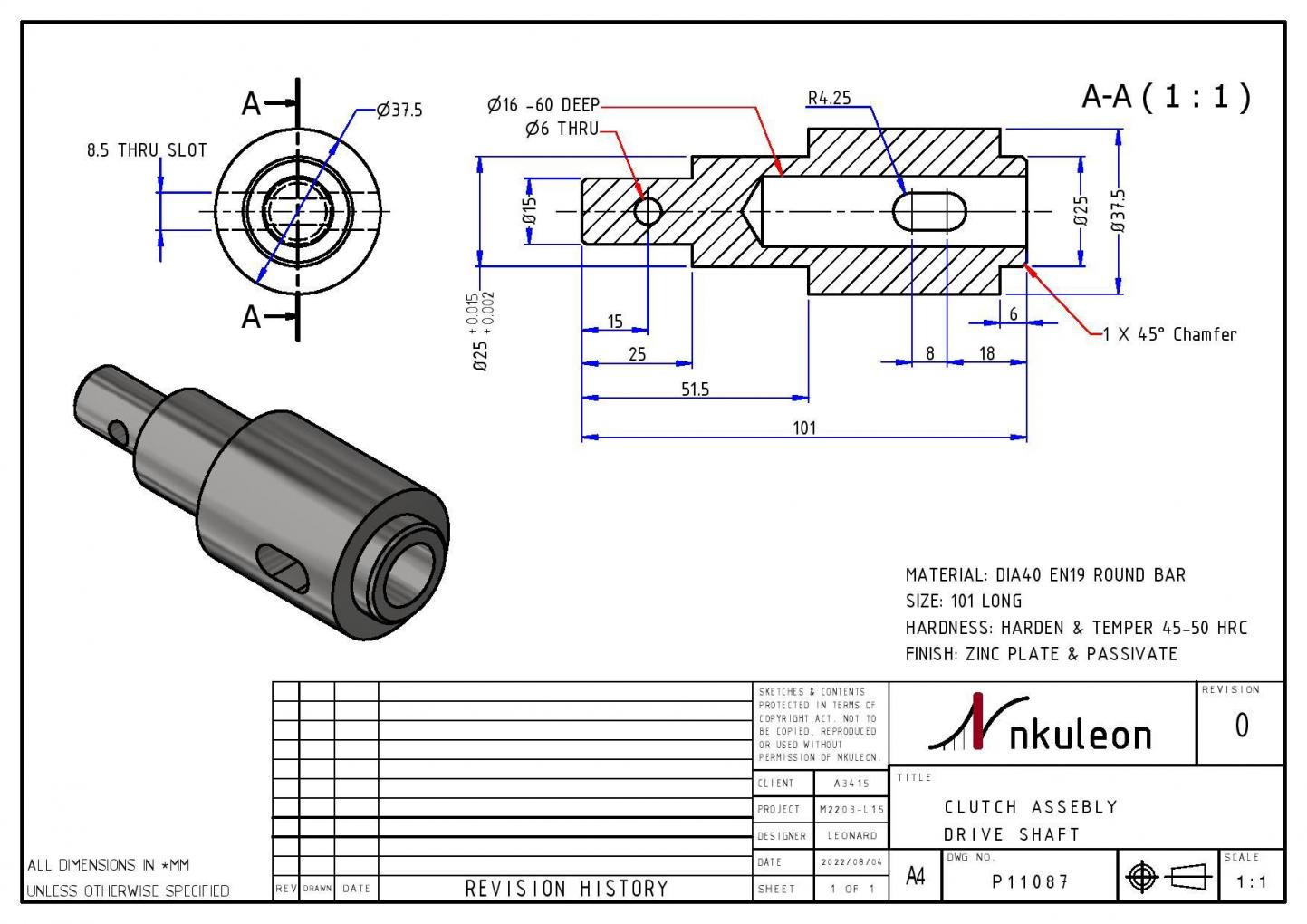

  1. 2D manufacturing drawings with tolerances - We provide clean, production-ready 2D drawings that show exact dimensions, material callouts, and tolerance bands so your manufacturer knows how to make each part correctly the first time.
  2. Bill of Materials (BOM) & basic assembly instructions - A simple parts list with quantities, suggested materials and standard components, plus straightforward assembly notes or an exploded view so your assembly team or supplier can put the product together without guesswork.
  3. Two rounds of revision included - We include two revision cycles to refine the design after your review — enough to capture feedback and finalize drawings. More revisions are available if you need them.
  4. 3D CAD files (STEP/IGES) (Optional) - If you want, we deliver clean, parametric 3D models in neutral formats (STEP/IGES) so you can run analysis, generate CAM paths, or hand files straight to vendors.
  5. FEA summary (Optional) - For parts where strength or stiffness matters, we can add a short FEA summary showing critical stresses, displacement and suggested safe limits — a clear snapshot so you can see how the design will perform.

|   Email: info@nkuleon.com  |   Contact: +27 61 469 3688   |

GET STARTED TODAY!

Contact us using the form below to request a quote and take the first step toward your design optimization!

Name
E-mail
Message
Attachments

Struggling to turn ideas into reliable parts or expensive prototypes? We create production-ready CAD and manufacturing drawings so suppliers can make the part right the first time.

What you get (Deliverables)
